Elkay-Bi-Level Outdoor Pedestal Bottle Filling Station and Pet Bowl LK4420BF1UDBEVG focus
Elkay-Bi-Level Outdoor Pedestal Bottle Filling Station and Pet Bowl LK4420BF1UDBEVG
Elkay-Bi-Level Outdoor Pedestal Bottle Filling Station and Pet Bowl LK4420BF1UDBEVG focus
Elkay-Bi-Level Outdoor Pedestal Bottle Filling Station and Pet Bowl LK4420BF1UDBEVG
Bottle Filling Stations and Water Fountains

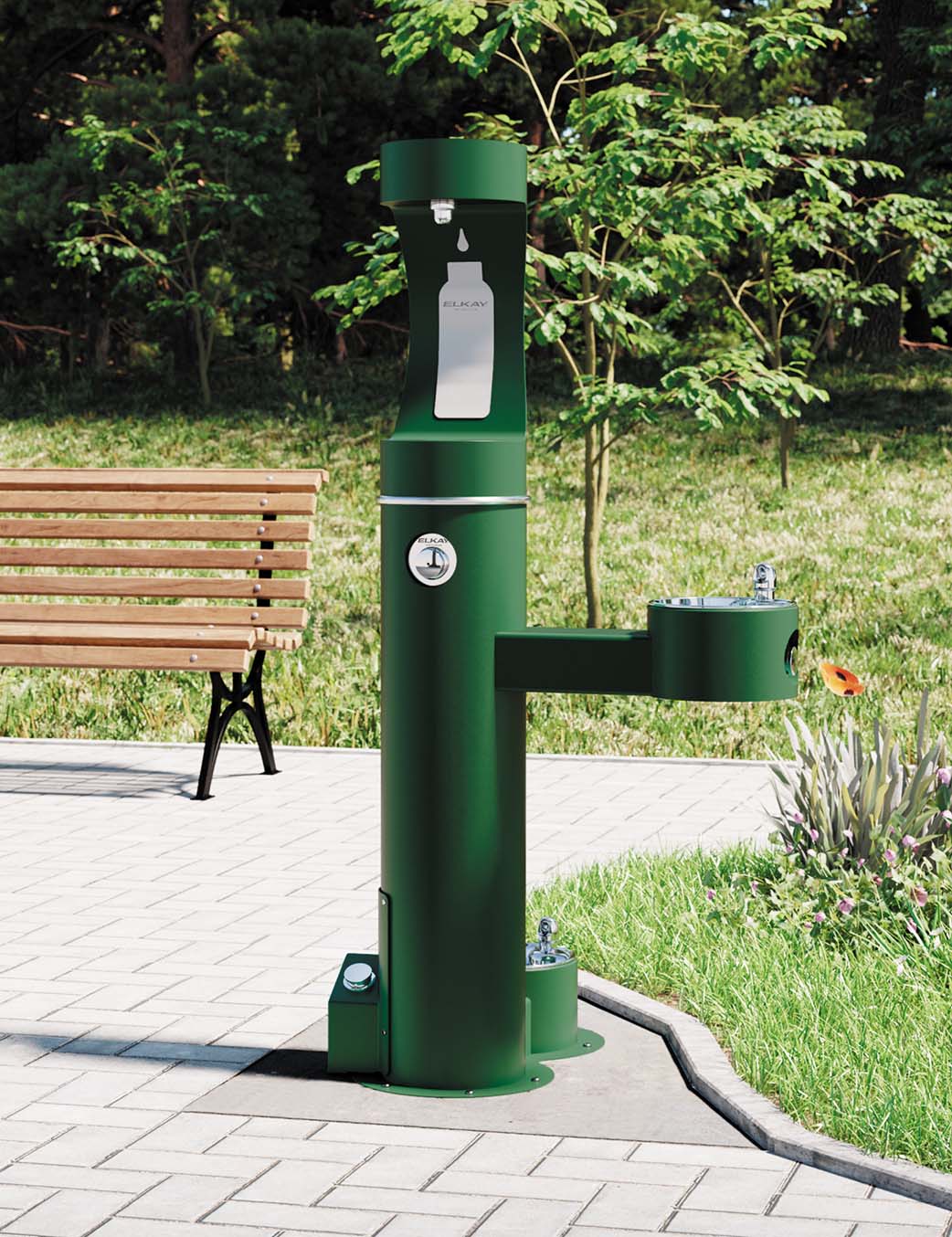

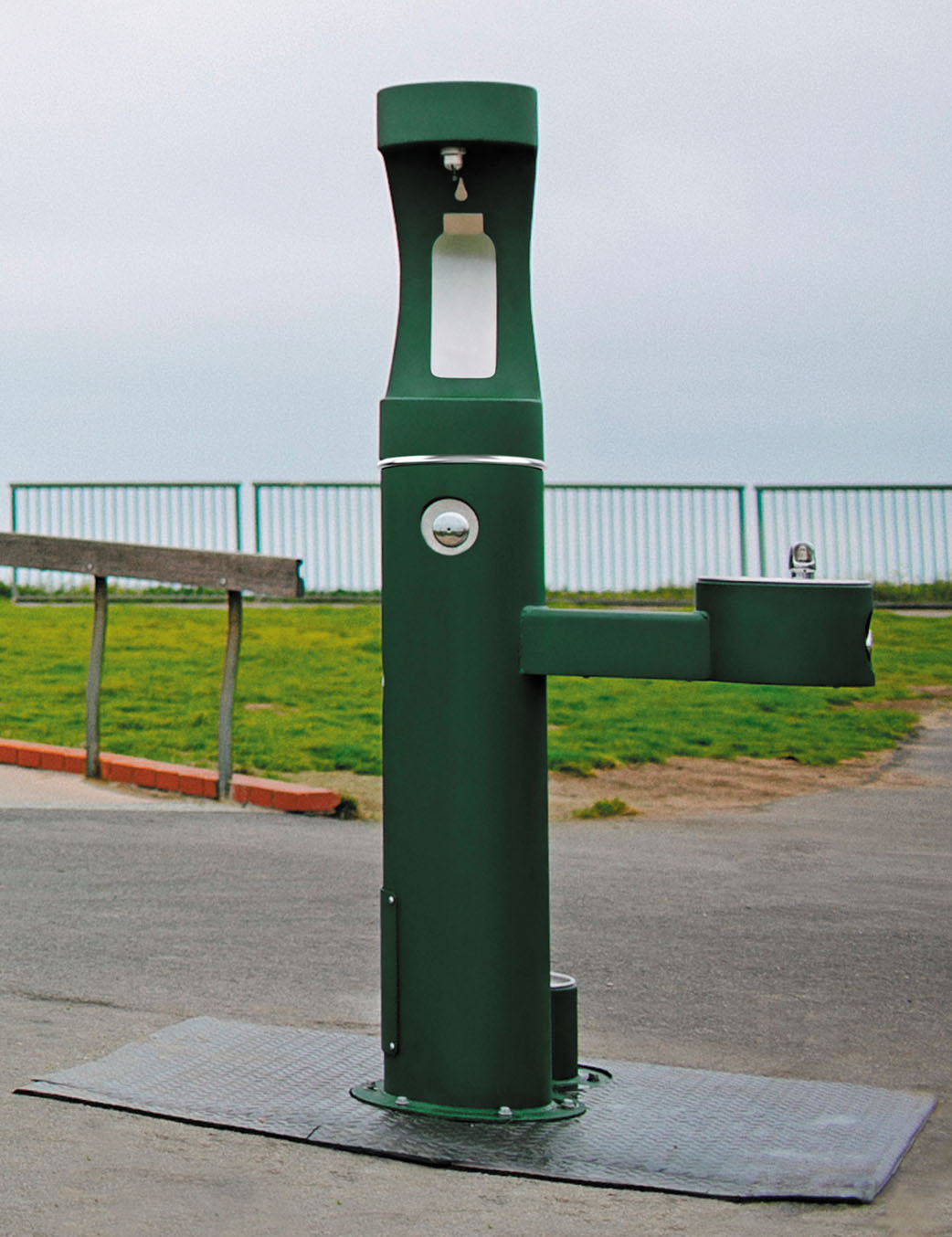

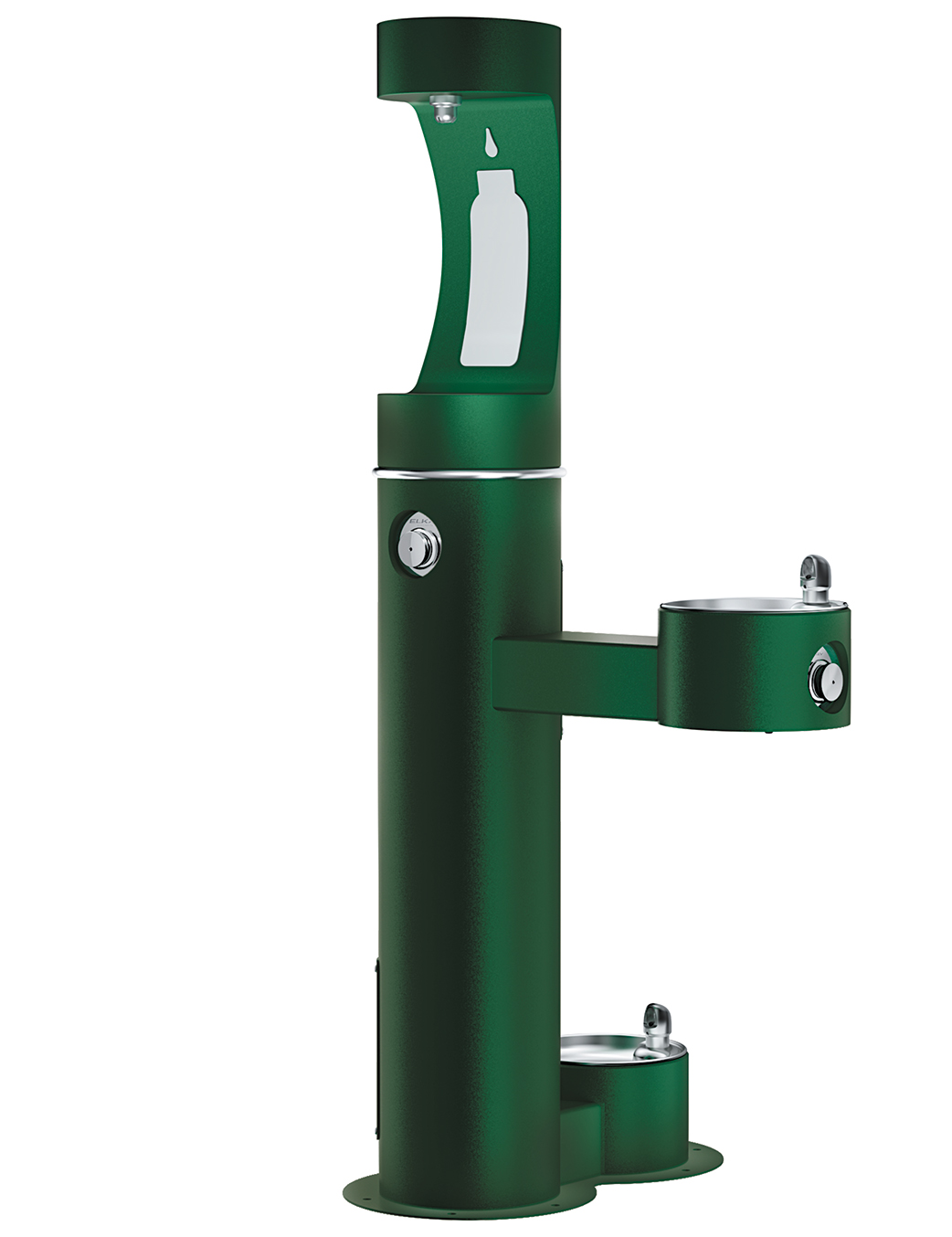

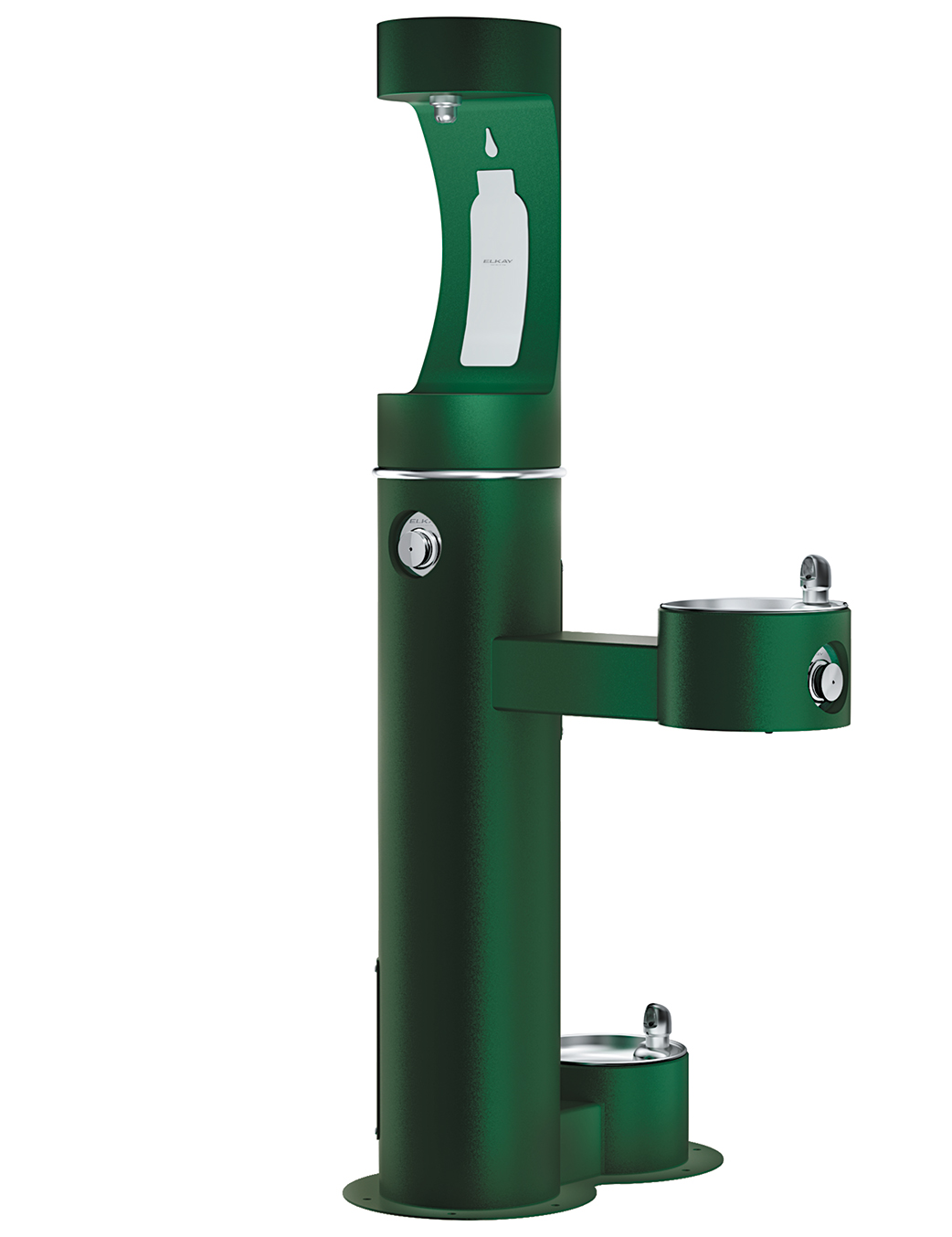

Elkay-Bi-Level Outdoor Pedestal Floor Standing Manual Bottle Filling Station and Pet Bowl

LK4420BF1UDBEVG
The Elkay-Bi-Level Outdoor Pedestal Floor Standing Manual Bottle Filling Station and Pet Bowl is made for outdoor installation. Equipped with a large, easily accessible bottle filler on the upper level and a recessed pet fountain on the lower level, this two-tier unit conveniently keeps people and their pets hydrated.

Water Options
Chilled
Sparkling
Ambient
Hot
Boiling
Key features
  • Floor mounted water dispenser
  • Suitable for outdoor public environments
  • Simple push-button activation
  • Evergreen colour as standard
  • Pet station
AT A GLANCE
  • Ambient Water (non-refrigerated)
  • Suitable For Outdoor Public Environments
  • Floor-mounted
Specification

LK4420BF1UDBEVG
The Elkay-Bi-Level Outdoor Pedestal Floor Standing Manual Bottle Filling Station and Pet Bowl is ideal for outdoor installation, with a strong 316 marine-grade stainless steel frame and a simple push-button activation unit to prevent damage from vandals. A water flow rate of one gallon per minute means that it’ll fill your standard 500ml drinks bottle in an impressive seven seconds. 100% ADA-accessible.

Equipped with a large, easily accessible bottle filler on the upper level and a recessed pet fountain on the lower level, this two-tier unit conveniently keeps people and their pets hydrated.

This bottle filler has been built with heavy duty vandal-resistant and corrosion-resistant features. The access panel is cast from heavy duty steel, with anti-vandal screws. This provides easy access should you need to alter or replace any plumbing connections, yet impossible access for troublemakers.

  • Water options: Ambient (non-refrigerated)
  • Colour Options: Evergreen colour as standard
  • Capacity: 272L/h

Key Features

  • High volume water bottle filler
  • Evergreen colour as standard
  • Suitable for outdoor public environments
  • Heavy duty vandal-resistant
  • One gallon per minute output of ambient water
  • Non-filtered, non-refrigerated model
  • Laminar flow provides minimal splash
  • Simple push-button activation

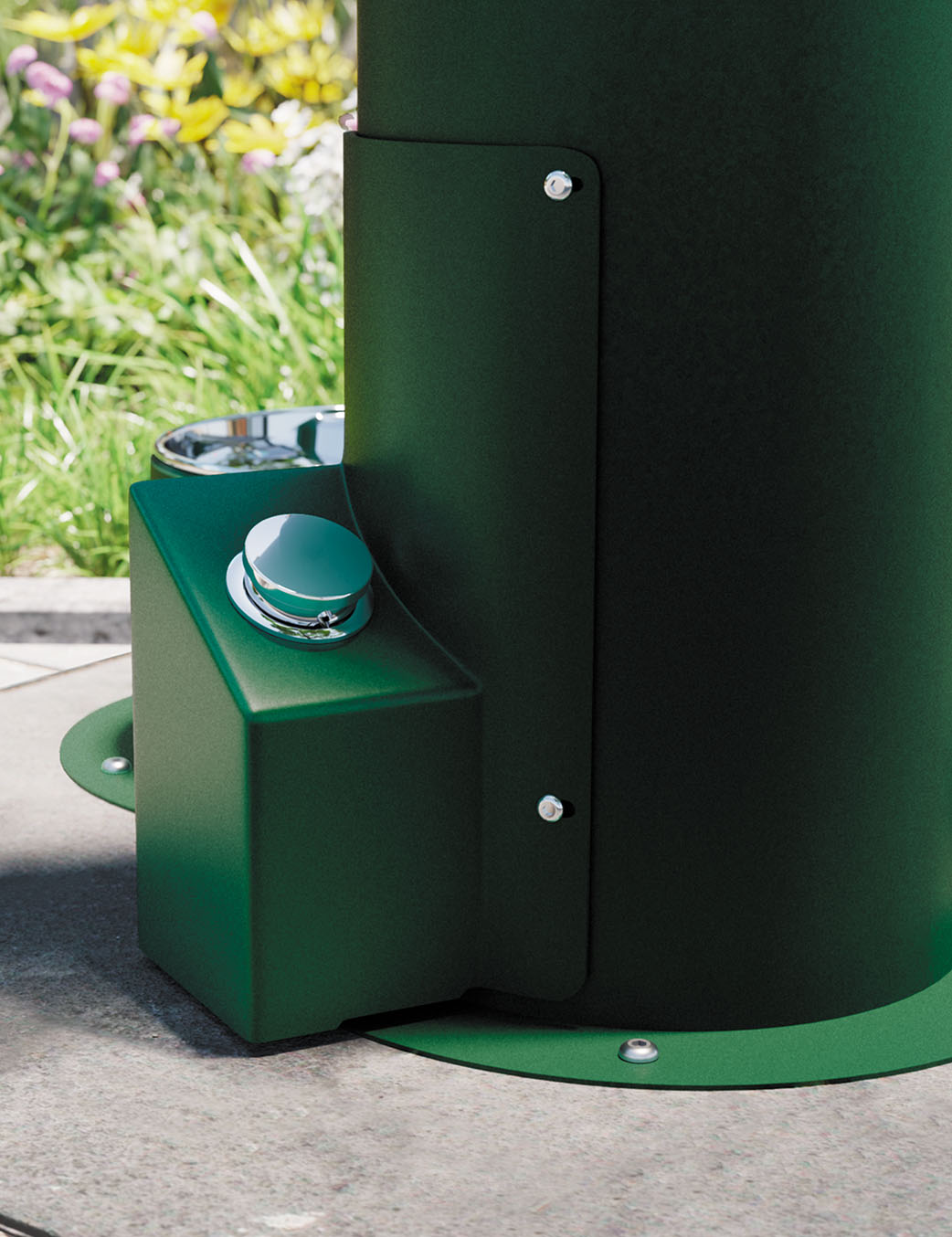

  • Pet station features slow drainage for easy drinking
Dimensions
  • Height: 1626mm
  • Width: 660mm
  • Depth: 787mm
FAQ

How often do you service my machine?

A Thirsty Work engineer will arrive to service your machine every 6 months.

Do I need to book a service, and what does it cost?

An engineer will automatically arrive to carry out servicing on your machine. Routine 6 monthly servicing is included with your monthly fee.

Where can a water fountain be installed?

When you choose a mains fed water fountain or bottle filler the machine will need to be installed where there is easy access to a mains water source. A water fountain will fit into a convenient space, to suit every environment, from gyms and sports complexes, hospitals, schools, and offices to large catering and hospitality venues.

Installation

The Elkay-Bi-Level Outdoor requires adequate floor space for installation. Please ensure that the following is available where the system is to be installed:

  • A level floor pad of concrete or similar that can support 31.2 kg. Minimum dimensions 400mm x 400mm.
  • A potable water supply in 15mm pipe directly through the centre of the floor pad.
  • A waste pipe with a minimum size of 32mm along side the water supply pipe.
  • A Direct Bury fountain adapter is an accessory. It provides a safe housing for the internal service pipes and a template within your prepared concrete pad for secure connection. This is an optional extra, please request at time or order.

All of the above can be confirmed in your site survey.

Thirsty Work Stainless Steel Refillable Cold Drinks Bottle Trio

Stainless Steel Cold Drinks Bottles

Our refillable Thirsty Work branded stainless steel 500ml drinks bottles compliment your bottle filler, enabling you to refill your water bottle whenever you need to, and reduce single-use plastic waste.

These water bottles are perfect for use in any school, workplace, gym or sports centre, with the option to add your own company branding.
